docx/font-emphasis-mark--dot

Metadata

XPath assertions

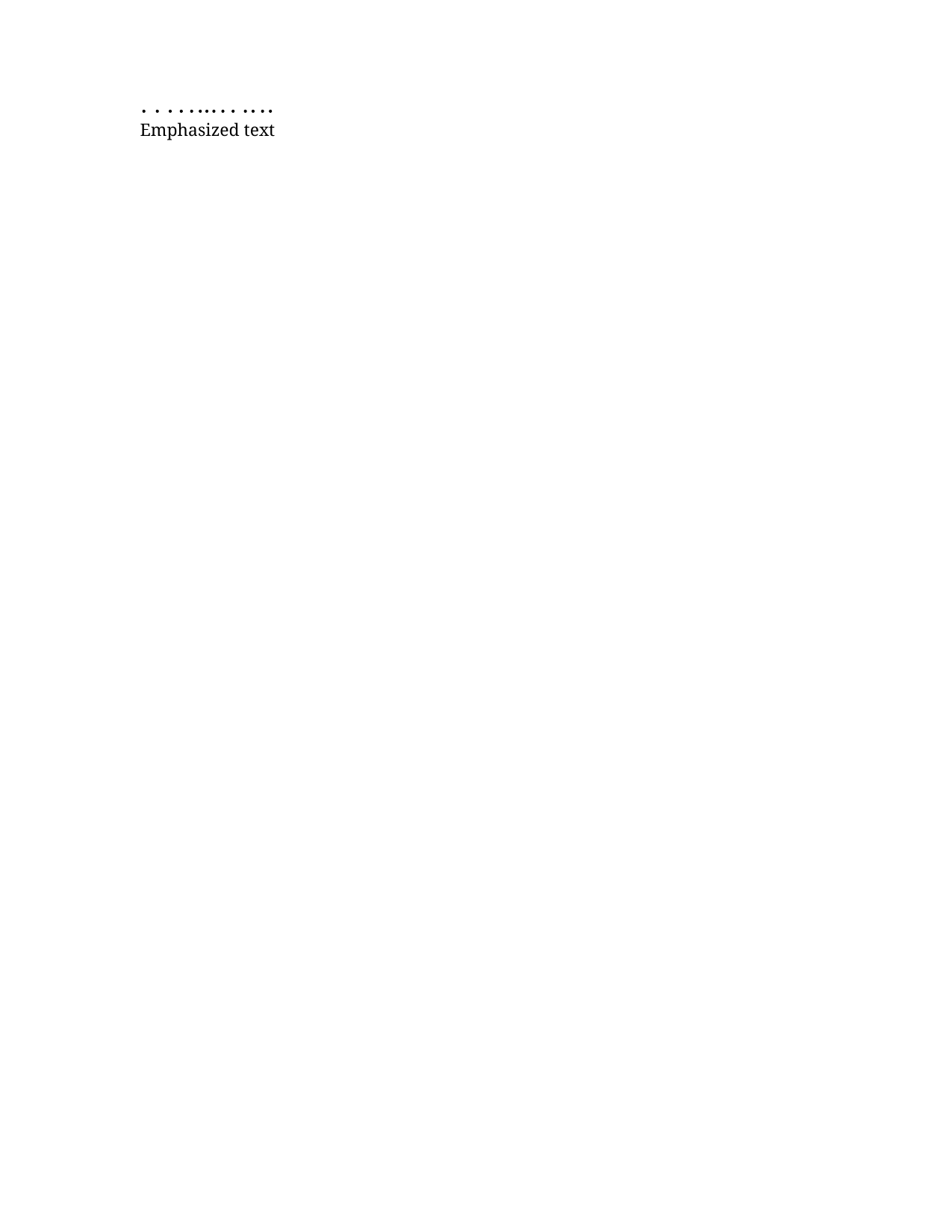

Render assertions

No render assertions declared.

Generator source

scripts/gen_font_emphasis_mark.py

#!/usr/bin/env python3
"""Generate a ``fixtures/docx/font-emphasis-mark--<mark>.docx`` fixture.

Parameterised generator for the ``docx/font-emphasis-mark`` feature
family. One invocation writes a single fixture with a single run
carrying a ``<w:em w:val="..."/>`` on its ``<w:rPr>``. python-docx has
no high-level API for emphasis marks, so this generator reaches down
to :class:`docx.oxml.OxmlElement` to append the element directly.

Usage::

    python scripts/gen_font_emphasis_mark.py \\
        --mark underDot \\
        --out fixtures/docx/font-emphasis-mark--underdot.docx

``--mark`` is one of the ST_Em enumerants: ``none``, ``dot``,
``comma``, ``circle``, ``underDot``.
"""

from __future__ import annotations

import argparse
from pathlib import Path

from docx import Document
from docx.oxml import OxmlElement
from docx.oxml.ns import qn

_REPO_ROOT = Path(__file__).resolve().parent.parent

_VALID_MARKS = {"none", "dot", "comma", "circle", "underDot"}


def _write(mark: str, out: Path) -> None:
    if mark not in _VALID_MARKS:
        raise ValueError(
            f"Unknown emphasis mark {mark!r}; expected one of {sorted(_VALID_MARKS)}"
        )

    doc = Document()
    paragraph = doc.add_paragraph()
    run = paragraph.add_run("Emphasized text")
    rPr = run._r.get_or_add_rPr()
    # Remove any pre-existing w:em to keep the element a singleton.
    for existing in rPr.findall(qn("w:em")):
        rPr.remove(existing)
    em = OxmlElement("w:em")
    em.set(qn("w:val"), mark)
    rPr.append(em)

    out.parent.mkdir(parents=True, exist_ok=True)
    doc.save(out, reproducible=True)


def main() -> int:
    parser = argparse.ArgumentParser()
    parser.add_argument(
        "--mark",
        required=True,
        help=f"ST_Em value, one of {sorted(_VALID_MARKS)}.",
    )
    parser.add_argument(
        "--out",
        required=True,
        help="Repo-relative or absolute output path for the .docx.",
    )
    args = parser.parse_args()

    out_path = Path(args.out)
    if not out_path.is_absolute():
        out_path = _REPO_ROOT / out_path
    _write(args.mark, out_path)
    print(out_path)
    return 0


if __name__ == "__main__":
    raise SystemExit(main())

Manifest (expanded)

{
  "$schema": "../manifest.schema.json",
  "id": "docx/font-emphasis-mark--dot",
  "kind": "literal",
  "title": "Font emphasis mark",
  "format": "docx",
  "category": "text-formatting",
  "summary": "Apply each of the five ST_Em emphasis-mark values (none, dot, comma, circle, underDot) to a run.",
  "spec": {
    "source": "ecma-376-5-part-1",
    "clause": "17.3.2.12",
    "element": "w:em",
    "rnc_reference": "spec/ecma-376-5/part-1/rnc/WordprocessingML.rnc",
    "xsd_reference": "spec/ecma-376-5/part-1/xsd/wml.xsd",
    "notes": "<w:em w:val=\"...\"/> on a run's rPr selects an emphasis mark, a small glyph drawn above each character (CJK convention, also used elsewhere). ST_Em enumerates 'none', 'dot', 'comma', 'circle', 'underDot'. python-docx has no high-level API for w:em, so this generator writes the element directly via OxmlElement."
  },
  "fixtures": {
    "machine": "docx/font-emphasis-mark--dot"
  },
  "generator": {
    "python": "scripts/gen_font_emphasis_mark.py",
    "arg_template": "--mark {mark.val} --out fixtures/docx/font-emphasis-mark--{mark.id}.docx"
  },
  "_expansion": {
    "parent_id": "docx/font-emphasis-mark",
    "bindings": {
      "mark": "dot"
    }
  },
  "assertions": [
    {
      "id": "em-element-present-dot",
      "part": "word/document.xml",
      "namespaces": {
        "w": "http://schemas.openxmlformats.org/wordprocessingml/2006/main"
      },
      "xpath": "//w:r[w:t[normalize-space()='Emphasized text']]/w:rPr/w:em",
      "must": "exist",
      "description": "The run must carry a <w:em> child inside <w:rPr>."
    },
    {
      "id": "em-val-is-dot",
      "part": "word/document.xml",
      "namespaces": {
        "w": "http://schemas.openxmlformats.org/wordprocessingml/2006/main"
      },
      "xpath": "//w:r[w:t[normalize-space()='Emphasized text']]/w:rPr/w:em/@w:val",
      "must": "equal",
      "value": "dot",
      "description": "The w:em element must carry the expected ST_Em value."
    }
  ]
}
