docx/footnote

Metadata

XPath assertions

Render assertions

Generator source

scripts/gen_footnote.py

#!/usr/bin/env python3
"""Generate ``fixtures/docx/footnote.docx``.

A minimal document exercising the ``w:footnoteReference`` element and
its companion ``w:footnote`` in ``word/footnotes.xml``. One paragraph
with a footnote attached to its first run; the footnote body text is
``This is the footnote text``.

Uses the fork's ``Document.footnotes.add(run, text=...)`` API
(python-docx >= 2026.05.0). The fork's ``Footnotes.add()`` takes a
target ``Run`` and appends a ``<w:footnoteReference>`` inside it,
allocates a fresh footnote id, and adds a matching ``<w:footnote>`` to
the footnotes part with the supplied text as a run in its first
paragraph.
"""

from __future__ import annotations

from pathlib import Path

from docx import Document

_REPO_ROOT = Path(__file__).resolve().parent.parent
_OUT = _REPO_ROOT / "fixtures" / "docx" / "footnote.docx"


def main() -> int:
    doc = Document()
    paragraph = doc.add_paragraph("Paragraph with a footnote")
    anchor_run = paragraph.runs[0]
    doc.footnotes.add(anchor_run, text="This is the footnote text")
    _OUT.parent.mkdir(parents=True, exist_ok=True)
    doc.save(_OUT, reproducible=True)
    print(_OUT)
    return 0


if __name__ == "__main__":
    raise SystemExit(main())

Manifest (expanded)

{
  "$schema": "../manifest.schema.json",
  "id": "docx/footnote",
  "title": "Footnote reference",
  "format": "docx",
  "category": "references",
  "summary": "A paragraph run carries a <w:footnoteReference> whose @w:id points at a footnote defined in word/footnotes.xml.",
  "spec": {
    "source": "ecma-376-5-part-1",
    "clause": "17.11.10",
    "element": "w:footnoteReference",
    "rnc_reference": "spec/ecma-376-5/part-1/rnc/WordprocessingML.rnc",
    "xsd_reference": "spec/ecma-376-5/part-1/xsd/wml.xsd",
    "notes": "A footnote is split across two parts: a <w:footnoteReference w:id='N'/> element living inside a run in the main story, and a matching <w:footnote w:id='N'> in word/footnotes.xml carrying the footnote body. Footnote IDs 0 and 1 are reserved (separator, continuation separator); user-authored footnotes start at 2."
  },
  "fixtures": {
    "machine": "docx/footnote",
    "office": "docx/footnote"
  },
  "generator": {
    "python": "scripts/gen_footnote.py"
  },
  "assertions": [
    {
      "id": "footnote-reference-in-body",
      "part": "word/document.xml",
      "namespaces": {
        "w": "http://schemas.openxmlformats.org/wordprocessingml/2006/main"
      },
      "xpath": "//w:footnoteReference[@w:id]",
      "must": "exist",
      "description": "At least one <w:footnoteReference> with a @w:id must appear inside the document body."
    },
    {
      "id": "footnote-body-text",
      "part": "word/footnotes.xml",
      "namespaces": {
        "w": "http://schemas.openxmlformats.org/wordprocessingml/2006/main"
      },
      "xpath": "//w:footnote[not(@w:type) or (@w:type!='separator' and @w:type!='continuationSeparator')]/w:p/w:r/w:t[normalize-space()='This is the footnote text']",
      "must": "exist",
      "description": "The footnotes part must contain a user footnote whose body text is the fixture literal."
    }
  ],

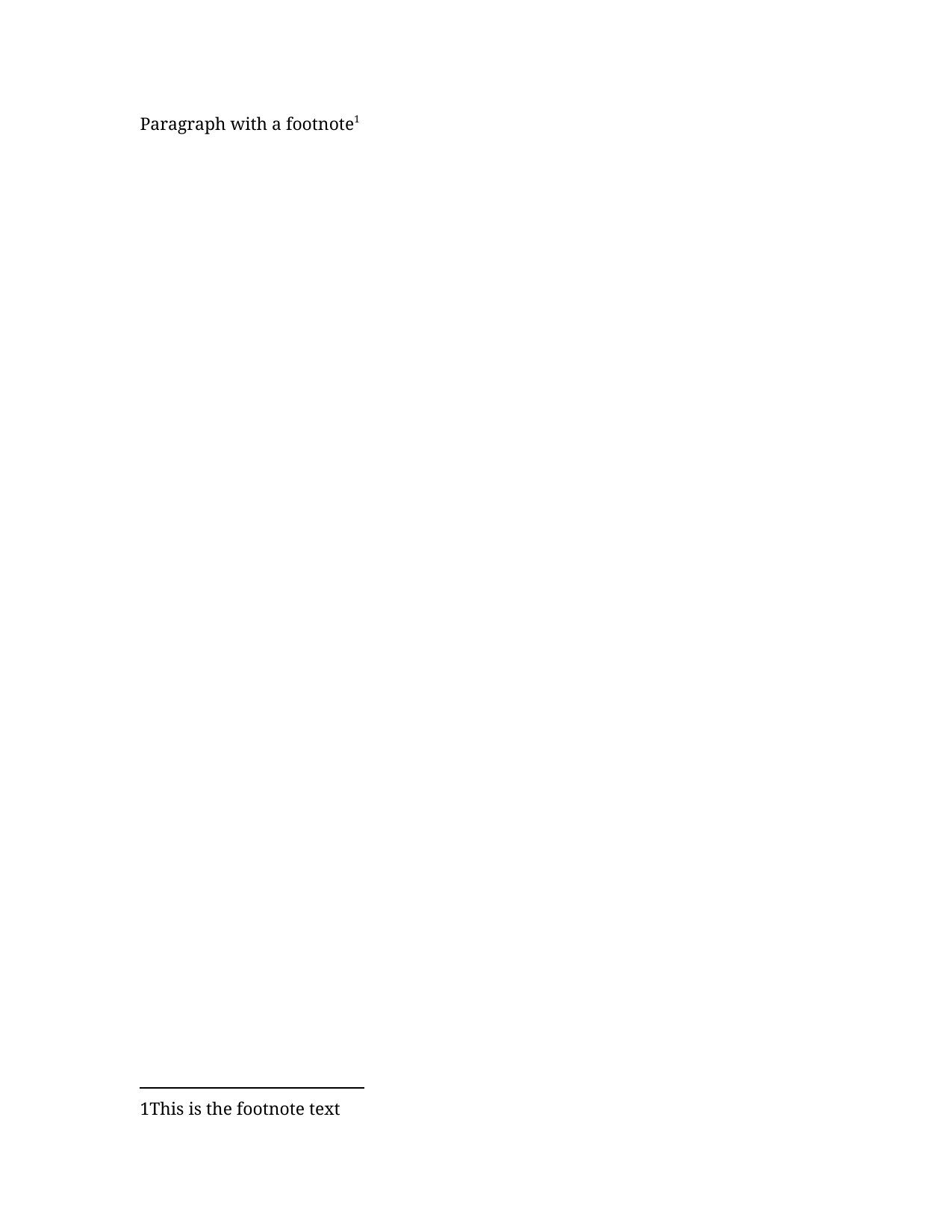

  "render_assertions": [
    {
      "id": "footnote-anchor-rendered",
      "kind": "css_selector",
      "selector": ".docx-wrapper [data-footnote], .docx-wrapper .footnote, .docx-wrapper sup.footnote-ref, .docx-wrapper sup a",
      "must": "exist",
      "description": "Some marker for the footnote reference should exist in the rendered DOM. Renderers often drop footnotes entirely — this is a known gap to track."
    }
  ]
}
