pptx/font-size-sp--pt24

Metadata

XPath assertions

Render assertions

No render assertions declared.

Generator source

scripts/gen_font_size_sp.py

#!/usr/bin/env python3
"""Generate a single ``fixtures/pptx/font-size-sp--<id>.pptx`` fixture.

Parameterised generator for the ``pptx/font-size-sp`` manifest family.
The conformance runner invokes this script once per case with
``--pt <POINTS> --out <path>``.

Each invocation produces a single-slide presentation containing one
textbox whose single run has its font size set via ``run.font.size =
Pt(pt)``. The underlying XML is ``<p:txBody>/<a:p>/<a:r>/<a:rPr sz="..."/>``;
the manifest asserts the ``@sz`` attribute equals the point-value in
hundredths (e.g. 14 pt -> sz="1400").
"""

from __future__ import annotations

import argparse
import datetime as _dt
from pathlib import Path

from pptx import Presentation
from pptx.util import Inches, Pt

_REPO_ROOT = Path(__file__).resolve().parent.parent
_REPRODUCIBLE_DT = _dt.datetime(2000, 1, 1, 0, 0, 0)


def _write(pt: int, out: Path) -> None:
    prs = Presentation()
    # "Title Only" layout — an empty title placeholder plus our textbox.
    slide = prs.slides.add_slide(prs.slide_layouts[5])
    tb = slide.shapes.add_textbox(Inches(1), Inches(1), Inches(6), Inches(2))
    tf = tb.text_frame

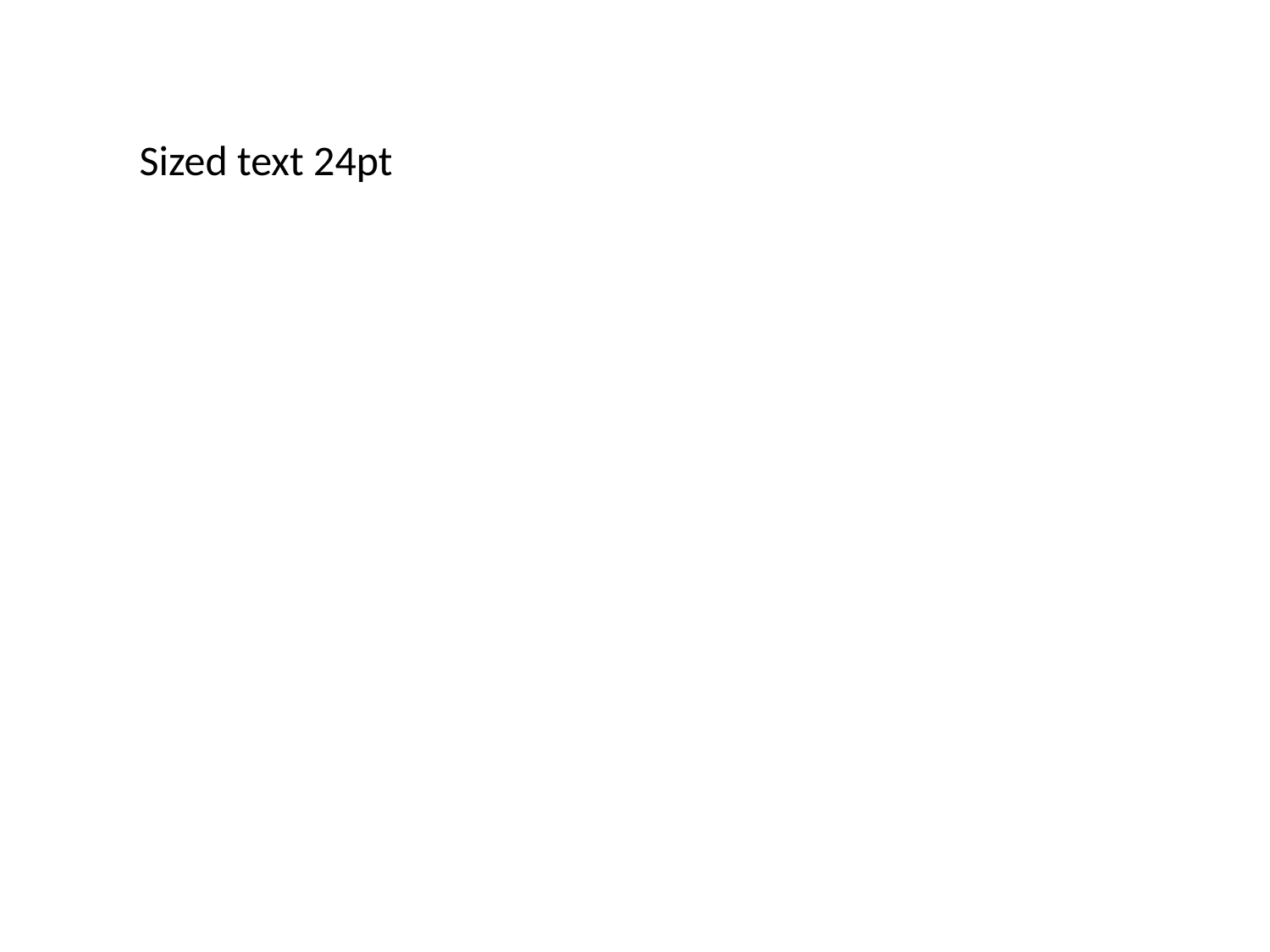

    tf.text = f"Sized text {pt}pt"
    tf.paragraphs[0].runs[0].font.size = Pt(pt)
    out.parent.mkdir(parents=True, exist_ok=True)
    prs.save(out, zip_date_time=_REPRODUCIBLE_DT)


def main() -> int:
    parser = argparse.ArgumentParser()
    parser.add_argument(
        "--pt",
        required=True,
        type=int,
        help="Font size in whole points.",
    )
    parser.add_argument(
        "--out",
        required=True,
        help="Output fixture path (absolute or repo-relative).",
    )
    args = parser.parse_args()

    out_path = Path(args.out)
    if not out_path.is_absolute():
        out_path = _REPO_ROOT / out_path
    _write(args.pt, out_path)
    print(out_path)
    return 0


if __name__ == "__main__":
    raise SystemExit(main())

Manifest (expanded)

{
  "$schema": "../manifest.schema.json",
  "id": "pptx/font-size-sp--pt24",
  "kind": "literal",
  "title": "Run-level font size (textbox)",
  "format": "pptx",
  "category": "text-formatting",
  "summary": "A text run inside a textbox has its font size set via run.font.size = Pt(N); python-pptx emits <a:r>/<a:rPr sz=\"N*100\"/> where sz is the point-size in hundredths of a point. This manifest is a parameterised family over 10 common point sizes: one manifest file expands into 10 cases, each backed by a distinct fixture pptx/font-size-sp--<id>.pptx generated from the same gen_font_size_sp.py script parameterised by --pt. The id suffix 'sp' disambiguates from the docx font-size family.",
  "spec": {
    "source": "ecma-376-5-part-1",
    "clause": "21.1.2.3.3",
    "element": "a:rPr",
    "rnc_reference": "spec/ecma-376-5/part-1/rnc/DrawingML.rnc",
    "xsd_reference": "spec/ecma-376-5/part-1/xsd/dml-text.xsd",
    "notes": "DrawingML <a:rPr> is the run-properties element inside <a:r>. Its @sz attribute is a ST_TextFontSize in hundredths of a point: an 8-pt run has sz=\"800\", 14 pt -> sz=\"1400\", 72 pt -> sz=\"7200\". python-pptx's ``run.font.size = Pt(n)`` computes this conversion and writes the @sz attribute. The assertion targets the run inside a textbox's <p:txBody>, avoiding matches against the slide's title placeholder run (which has no @sz)."
  },
  "fixtures": {
    "machine": "pptx/font-size-sp--pt24"
  },
  "generator": {
    "python": "scripts/gen_font_size_sp.py",
    "arg_template": "--pt {size.pt} --out fixtures/pptx/font-size-sp--{size.id}.pptx"
  },
  "_expansion": {
    "parent_id": "pptx/font-size-sp",
    "bindings": {
      "size": "pt24"
    }
  },
  "assertions": [
    {
      "id": "font-size-sp-pt24",
      "part": "ppt/slides/slide1.xml",
      "namespaces": {
        "p": "http://schemas.openxmlformats.org/presentationml/2006/main",
        "a": "http://schemas.openxmlformats.org/drawingml/2006/main"
      },
      "xpath": "//p:sp[p:nvSpPr/p:cNvSpPr[@txBox='1']]//a:r/a:rPr/@sz",
      "must": "equal",
      "value": "2400",
      "description": "The textbox run's <a:rPr> must declare sz=\"2400\" (=24 pt in hundredths)."
    }
  ]
}
