pptx/slide-layout--vert-title-text

Metadata

XPath assertions

Render assertions

No render assertions declared.

Generator source

scripts/gen_slide_layout.py

#!/usr/bin/env python3
"""Generate a ``fixtures/pptx/slide-layout--<id>.pptx`` fixture.

Parameterised generator for the ``pptx/slide-layout`` manifest family.
python-pptx's default template ships eleven standard slide layouts
(idx 0-10); this generator adds a single slide based on the layout
at the requested index, sets the title placeholder text when one is
present, and writes the result to ``--out``.

The ``features/pptx/slide-layout.json`` manifest's
``generator.arg_template`` field drives these args at expansion time.
"""

from __future__ import annotations

import argparse
import datetime as _dt
from pathlib import Path

from pptx import Presentation

_REPRODUCIBLE_DT = _dt.datetime(2000, 1, 1, 0, 0, 0)
_REPO_ROOT = Path(__file__).resolve().parent.parent


def _write(layout_idx: int, out: Path) -> None:
    prs = Presentation()
    slide = prs.slides.add_slide(prs.slide_layouts[layout_idx])
    # Not every layout has a title placeholder (e.g. Blank). Set it
    # where present so visual renders have at least one text anchor.
    if slide.shapes.title is not None:

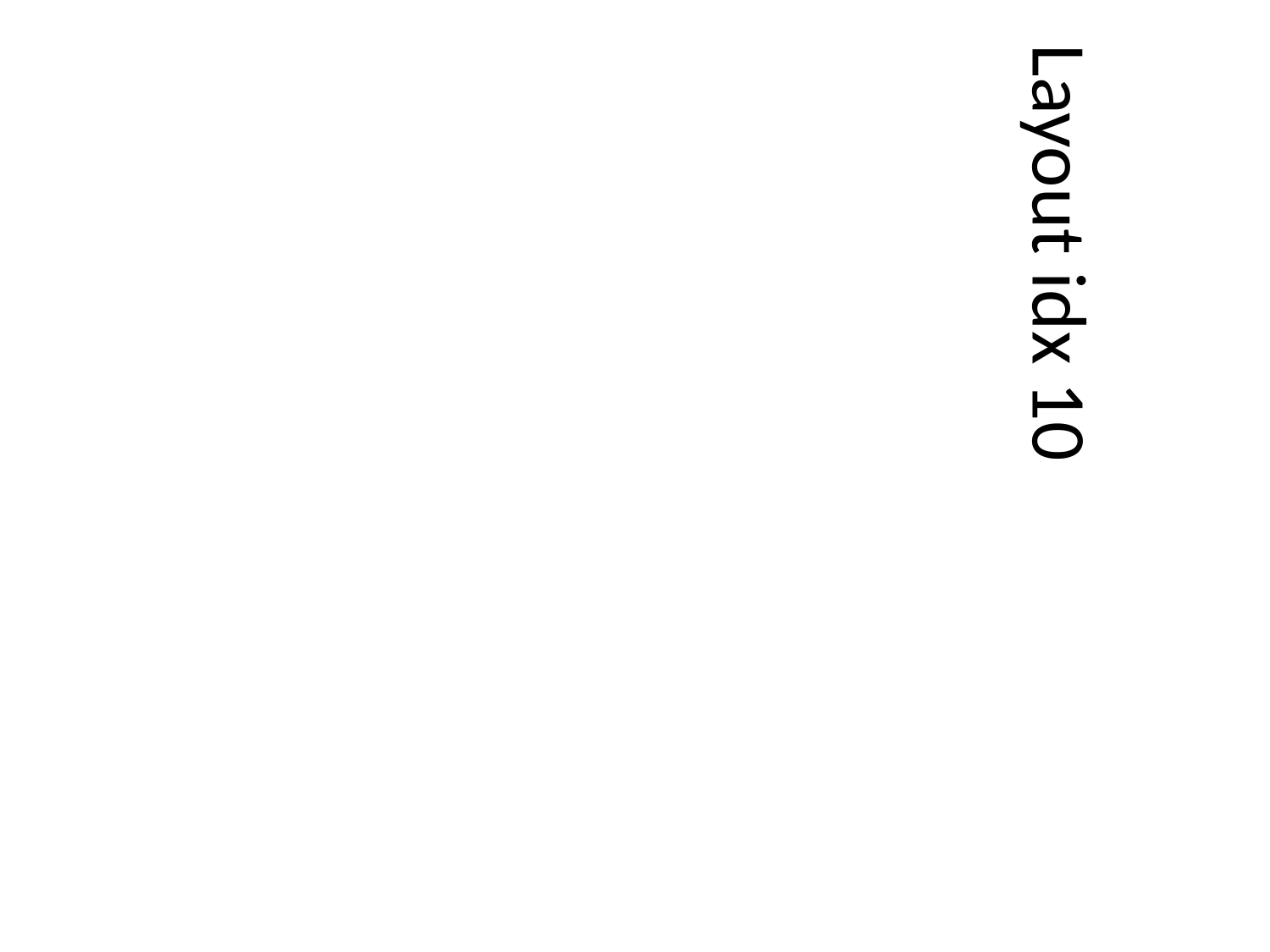

        slide.shapes.title.text = f"Layout idx {layout_idx}"
    out.parent.mkdir(parents=True, exist_ok=True)
    prs.save(out, zip_date_time=_REPRODUCIBLE_DT)


def main() -> int:
    parser = argparse.ArgumentParser()
    parser.add_argument(
        "--layout-idx",
        type=int,
        default=0,
        help="Slide layout index in the default template (0-10).",
    )
    parser.add_argument(
        "--out",
        default=str(_REPO_ROOT / "fixtures" / "pptx" / "slide-layout.pptx"),
    )
    args = parser.parse_args()

    out_path = Path(args.out)
    if not out_path.is_absolute():
        out_path = _REPO_ROOT / out_path
    _write(args.layout_idx, out_path)
    print(out_path)
    return 0


if __name__ == "__main__":
    raise SystemExit(main())

Manifest (expanded)

{
  "$schema": "../manifest.schema.json",
  "id": "pptx/slide-layout--vert-title-text",
  "kind": "literal",
  "title": "Slide layout",
  "format": "pptx",
  "category": "slide-layout",
  "summary": "A slide references a slide-layout part via a r:slideLayout relationship. PowerPoint's default template ships eleven standard layouts (Title, Title+Content, Section Header, Two Content, Comparison, Title Only, Blank, Content+Caption, Picture+Caption, Title+Vertical Text, Vertical Title+Text).",
  "spec": {
    "source": "ecma-376-5-part-1",
    "clause": "19.3.1.15",
    "element": "sldLayout",
    "rnc_reference": "spec/ecma-376-5/part-1/rnc/PresentationML.rnc",
    "xsd_reference": "spec/ecma-376-5/part-1/xsd/pml.xsd",
    "notes": "Each slide part carries exactly one slideLayout relationship pointing at its parent layout. The default presentation template in python-pptx ships 11 standard layouts at indices 0-10 that map to slideLayout1.xml ... slideLayout11.xml; however the target filename depends on the layout ordering inside the theme and should not be asserted on. This manifest is a parameterised family: one manifest expands into eleven concrete cases, one per standard layout. Each expanded case targets a distinct fixture pptx/slide-layout--<id>.pptx generated from gen_slide_layout.py parameterised by --layout-idx."
  },
  "fixtures": {
    "machine": "pptx/slide-layout--vert-title-text"
  },
  "generator": {
    "python": "scripts/gen_slide_layout.py",
    "arg_template": "--layout-idx {layout.idx} --out fixtures/pptx/slide-layout--{layout.id}.pptx"
  },
  "_expansion": {
    "parent_id": "pptx/slide-layout",
    "bindings": {
      "layout": "vert-title-text"
    }
  },
  "assertions": [
    {
      "id": "slide-has-layout-rel-vert-title-text",
      "part": "ppt/slides/_rels/slide1.xml.rels",
      "namespaces": {
        "r": "http://schemas.openxmlformats.org/package/2006/relationships"
      },
      "xpath": "count(//*[local-name()='Relationship'][@Type='http://schemas.openxmlformats.org/officeDocument/2006/relationships/slideLayout'])",
      "must": "match",
      "value": "^1(\\.0)?$",
      "description": "slide1 must carry exactly one slideLayout relationship."
    },
    {
      "id": "layout-ref-from-slide-vert-title-text",
      "part": "ppt/slides/_rels/slide1.xml.rels",
      "namespaces": {
        "r": "http://schemas.openxmlformats.org/package/2006/relationships"
      },
      "xpath": "//*[local-name()='Relationship'][@Type='http://schemas.openxmlformats.org/officeDocument/2006/relationships/slideLayout']/@Target",
      "must": "match",
      "value": "slideLayout\\d+\\.xml$",
      "description": "The slideLayout relationship target must point at a slideLayoutN.xml part; the exact N depends on theme ordering, not on the axis idx."
    }
  ]
}
