pptx/slide-transition--wipe

Metadata

XPath assertions

Render assertions

No render assertions declared.

Generator source

scripts/gen_slide_transition.py

#!/usr/bin/env python3
"""Generate a single ``fixtures/pptx/slide-transition--<id>.pptx``.

Parameterised generator: the ``features/pptx/slide-transition.json``
manifest expands to one case per transition effect (fade, push, wipe,
split, reveal, randomBar, zoom, cut, flythrough), and the conformance
runner invokes this script once per case with ``--transition <name>
--out <path>``.

Each invocation produces a single-slide presentation whose ``p:sld``
element has a ``p:transition`` child carrying a single direct-child
element named ``p:<transition>``.

Since python-pptx 2026.05.0 this generator uses the high-level
``Slide.transition`` authoring API (``slide.transition.type =
PP_TRANSITION_TYPE.FADE`` and friends) for every transition name
that corresponds to a ``PP_TRANSITION_TYPE`` enum member. Two cases
in the manifest — ``reveal`` and ``flythrough`` — are PowerPoint
2010+ extensions that are not members of the ISO-29500
``CT_SlideTransition`` choice group (PowerPoint itself emits them
through ``<p:extLst><p:ext uri="..."><p14:...>`` wrappers rather
than as direct children of ``<p:transition>``). For those two the
generator falls through to a small ``lxml`` escape hatch so the
assertion (``local-name(//p:transition/*[1])``) still succeeds —
the manifest documents this caveat in its ``spec.notes``.
"""

from __future__ import annotations

import argparse
import datetime as _dt
from pathlib import Path

from lxml import etree
from pptx import Presentation
from pptx.enum.transition import PP_TRANSITION_TYPE
from pptx.oxml.ns import qn

_REPO_ROOT = Path(__file__).resolve().parent.parent
_REPRODUCIBLE_DT = _dt.datetime(2000, 1, 1, 0, 0, 0)

# -- map manifest `element` token (the XML local-name) to the matching
# -- PP_TRANSITION_TYPE enum member. Members not in this map (``reveal``
# -- and ``flythrough``) are written via the raw-lxml fallback below.
_TRANSITION_BY_TOKEN = {
    member.xml_value: member
    for member in PP_TRANSITION_TYPE
    if member.xml_value  # skip NONE (empty xml_value)
}


def _write(transition: str, out: Path) -> None:
    prs = Presentation()
    # "Title Only" layout — a title placeholder on an otherwise plain slide.
    slide = prs.slides.add_slide(prs.slide_layouts[5])

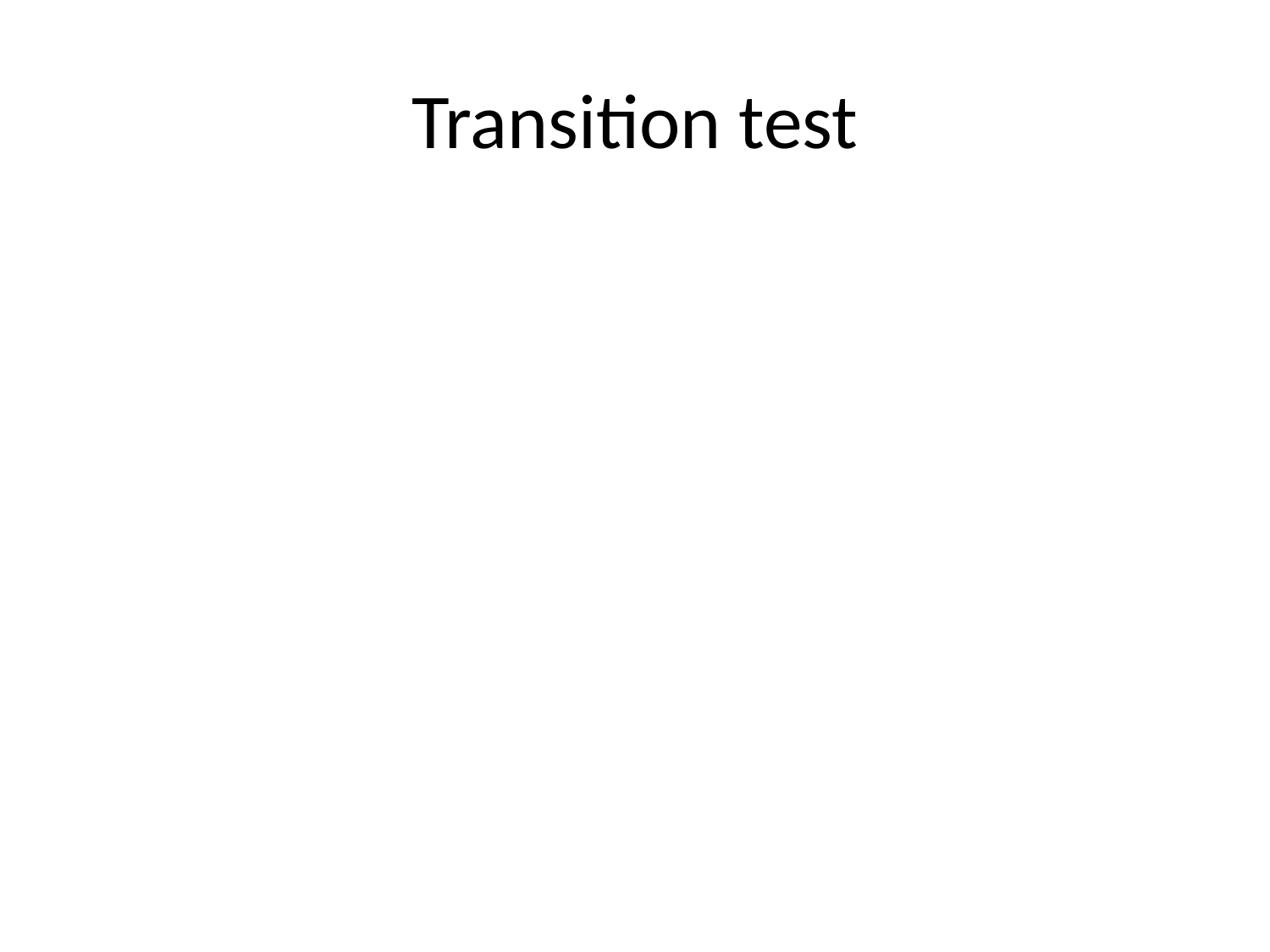

    slide.shapes.title.text = "Transition test"

    enum_member = _TRANSITION_BY_TOKEN.get(transition)
    if enum_member is not None:
        # -- use the high-level authoring API (post-Foundation F8) --
        slide.transition.type = enum_member
    else:
        # -- reveal / flythrough: 2010+ extension tokens that live
        # -- outside the ISO CT_SlideTransition choice. Append the
        # -- raw element as a direct child of p:transition so the
        # -- local-name() assertion still matches. See the manifest
        # -- spec.notes for why this is acceptable for fixture use.
        sld = slide._element
        transition_el = etree.SubElement(sld, qn("p:transition"))
        etree.SubElement(transition_el, qn(f"p:{transition}"))

    out.parent.mkdir(parents=True, exist_ok=True)
    prs.save(out, zip_date_time=_REPRODUCIBLE_DT)


def main() -> int:
    parser = argparse.ArgumentParser()
    parser.add_argument(
        "--transition",
        required=True,
        help="Transition child element local-name, e.g. fade, push, wipe.",
    )
    parser.add_argument(
        "--out",
        required=True,
        help="Output fixture path (absolute or repo-relative).",
    )
    args = parser.parse_args()

    out_path = Path(args.out)
    if not out_path.is_absolute():
        out_path = _REPO_ROOT / out_path
    _write(args.transition, out_path)
    print(out_path)
    return 0


if __name__ == "__main__":
    raise SystemExit(main())

Manifest (expanded)

{
  "$schema": "../manifest.schema.json",
  "id": "pptx/slide-transition--wipe",
  "kind": "literal",
  "title": "Slide transition",
  "format": "pptx",
  "category": "slide-content",
  "summary": "Attach a <p:transition> element to a slide, carrying one of the ECMA-376 slide-transition effect children (fade, push, wipe, split, reveal, randomBar, zoom, cut, flythrough). One manifest file expands into nine concrete transition test cases at runtime, each backed by a distinct fixture pptx/slide-transition--<id>.pptx generated from the same gen_slide_transition.py script parameterised by --transition <name>.",
  "spec": {
    "source": "ecma-376-5-part-1",
    "clause": "19.5.70",
    "element": "p:transition",
    "rnc_reference": "spec/ecma-376-5/part-1/rnc/pml.rnc",
    "xsd_reference": "spec/ecma-376-5/part-1/xsd/pml.xsd",
    "notes": "<p:transition> carries the slide-transition effect for a slide. The choice of transition is encoded as a single direct-child element whose local-name is the effect token: fade, push, wipe, split, randomBar, zoom, cut are enumerated in p_CT_SlideTransition in the base ECMA-376 Part 1 schema. 'reveal' and 'flythrough' are PowerPoint 2010+ extensions — PowerPoint normally wraps them inside <p:extLst><p:ext uri=\"...\"><p14:...> rather than emitting them as direct children of <p:transition>. This fixture writes them as direct children of <p:transition> in the p namespace, which is sufficient to exercise the local-name identity asserted below but is not bit-for-bit what PowerPoint authors would emit for those two effects."
  },
  "fixtures": {
    "machine": "pptx/slide-transition--wipe"
  },
  "generator": {
    "python": "scripts/gen_slide_transition.py",
    "arg_template": "--transition {transition.element} --out fixtures/pptx/slide-transition--{transition.id}.pptx"
  },
  "_expansion": {
    "parent_id": "pptx/slide-transition",
    "bindings": {
      "transition": "wipe"
    }
  },
  "assertions": [
    {
      "id": "transition-is-wipe",
      "part": "ppt/slides/slide1.xml",
      "namespaces": {
        "p": "http://schemas.openxmlformats.org/presentationml/2006/main"
      },
      "xpath": "local-name(//p:transition/*[1])",
      "must": "equal",
      "value": "wipe",
      "description": "The slide's <p:transition> element must carry a single direct-child element whose local-name is the expected transition token (wipe)."
    }
  ]
}
