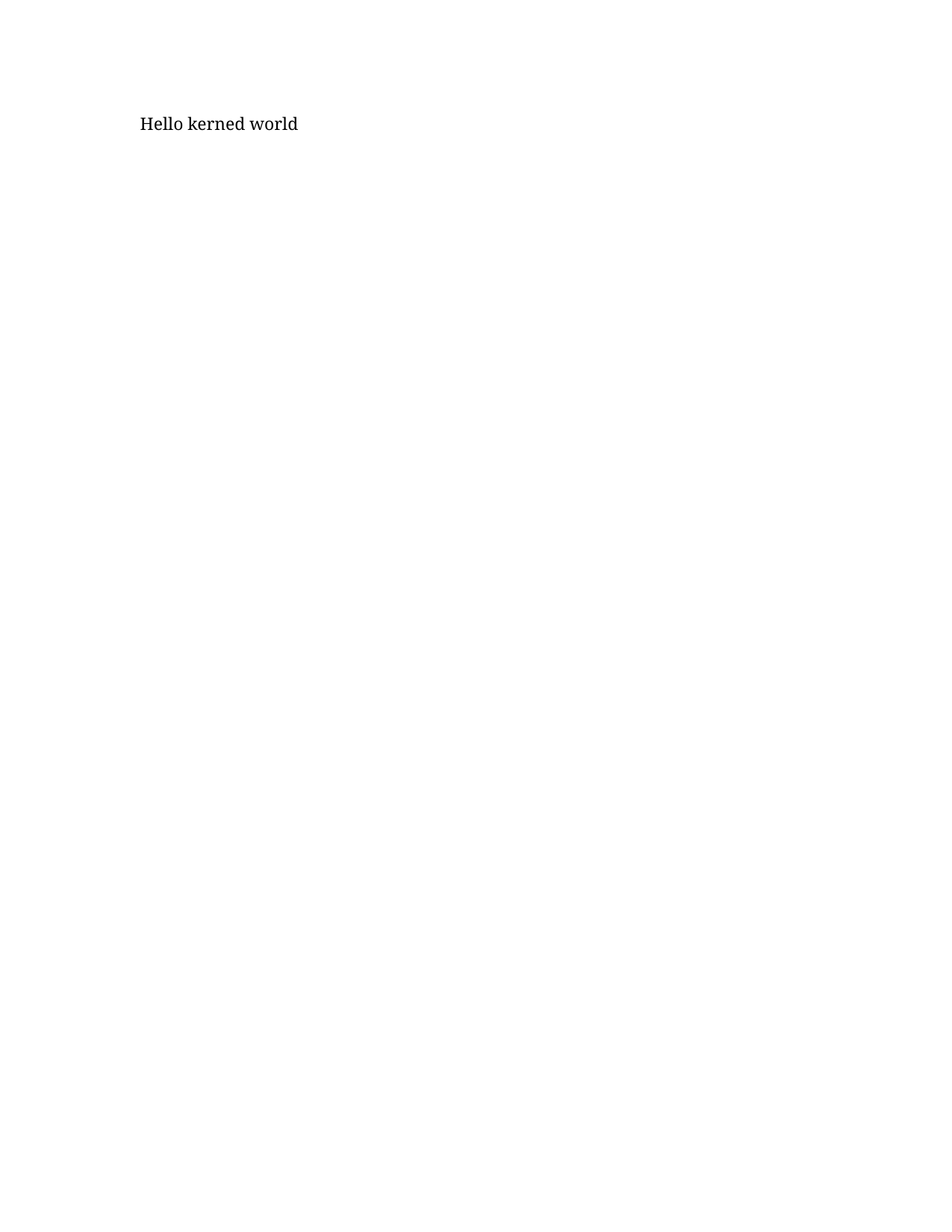

docx/run-kerning

Metadata

XPath assertions

Render assertions

No render assertions declared.

Generator source

scripts/gen_run_kerning.py

#!/usr/bin/env python3
"""Generate ``fixtures/docx/run-kerning.docx``.

A minimal document with one run whose font has a kerning threshold set
to 12 points (serialised as the half-point value ``24`` in XML).
Designed to satisfy the assertions in ``features/docx/run-kerning.json``.
"""

from __future__ import annotations

from pathlib import Path

from docx import Document
from docx.shared import Pt

_REPO_ROOT = Path(__file__).resolve().parent.parent
_OUT = _REPO_ROOT / "fixtures" / "docx" / "run-kerning.docx"


def main() -> int:
    doc = Document()
    paragraph = doc.add_paragraph()
    run = paragraph.add_run("Hello kerned world")
    run.font.kerning = Pt(12)
    _OUT.parent.mkdir(parents=True, exist_ok=True)
    doc.save(_OUT, reproducible=True)
    print(_OUT)
    return 0


if __name__ == "__main__":
    raise SystemExit(main())

Manifest (expanded)

{
  "$schema": "../manifest.schema.json",
  "id": "docx/run-kerning",
  "title": "Run-level kerning threshold",
  "format": "docx",
  "category": "text-formatting",
  "summary": "Apply a kerning activation threshold to a run; kerning engages automatically for font sizes at or above the threshold.",
  "spec": {
    "source": "ecma-376-5-part-1",
    "clause": "17.3.2.17",
    "element": "w:kern",
    "rnc_reference": "spec/ecma-376-5/part-1/rnc/WordprocessingML.rnc",
    "xsd_reference": "spec/ecma-376-5/part-1/xsd/wml.xsd",
    "notes": "w:kern/@w:val is an ST_HpsMeasure (half-points). A value of 24 represents 12 points — Word engages automatic kerning for runs whose font size is at least the threshold. Setting run.font.kerning = Pt(12) via python-docx emits <w:kern w:val=\"24\"/> inside <w:rPr>."
  },
  "fixtures": {
    "machine": "docx/run-kerning",
    "office": "docx/run-kerning"
  },
  "generator": {
    "python": "scripts/gen_run_kerning.py"
  },
  "assertions": [
    {
      "id": "kern-element-present",
      "part": "word/document.xml",
      "namespaces": {
        "w": "http://schemas.openxmlformats.org/wordprocessingml/2006/main"
      },
      "xpath": "//w:r[w:t[normalize-space()='Hello kerned world']]/w:rPr/w:kern",
      "must": "exist",
      "description": "The run carrying the kerned text must have a <w:kern> child inside <w:rPr>."
    },
    {
      "id": "kern-val-half-points",
      "part": "word/document.xml",
      "namespaces": {
        "w": "http://schemas.openxmlformats.org/wordprocessingml/2006/main"
      },
      "xpath": "//w:r[w:t[normalize-space()='Hello kerned world']]/w:rPr/w:kern/@w:val",
      "must": "equal",
      "value": "24",
      "description": "The kerning threshold must serialise as the half-point value '24' (12 points)."
    }
  ]
}
