docx/style-builtin--list-bullet-3

Metadata

XPath assertions

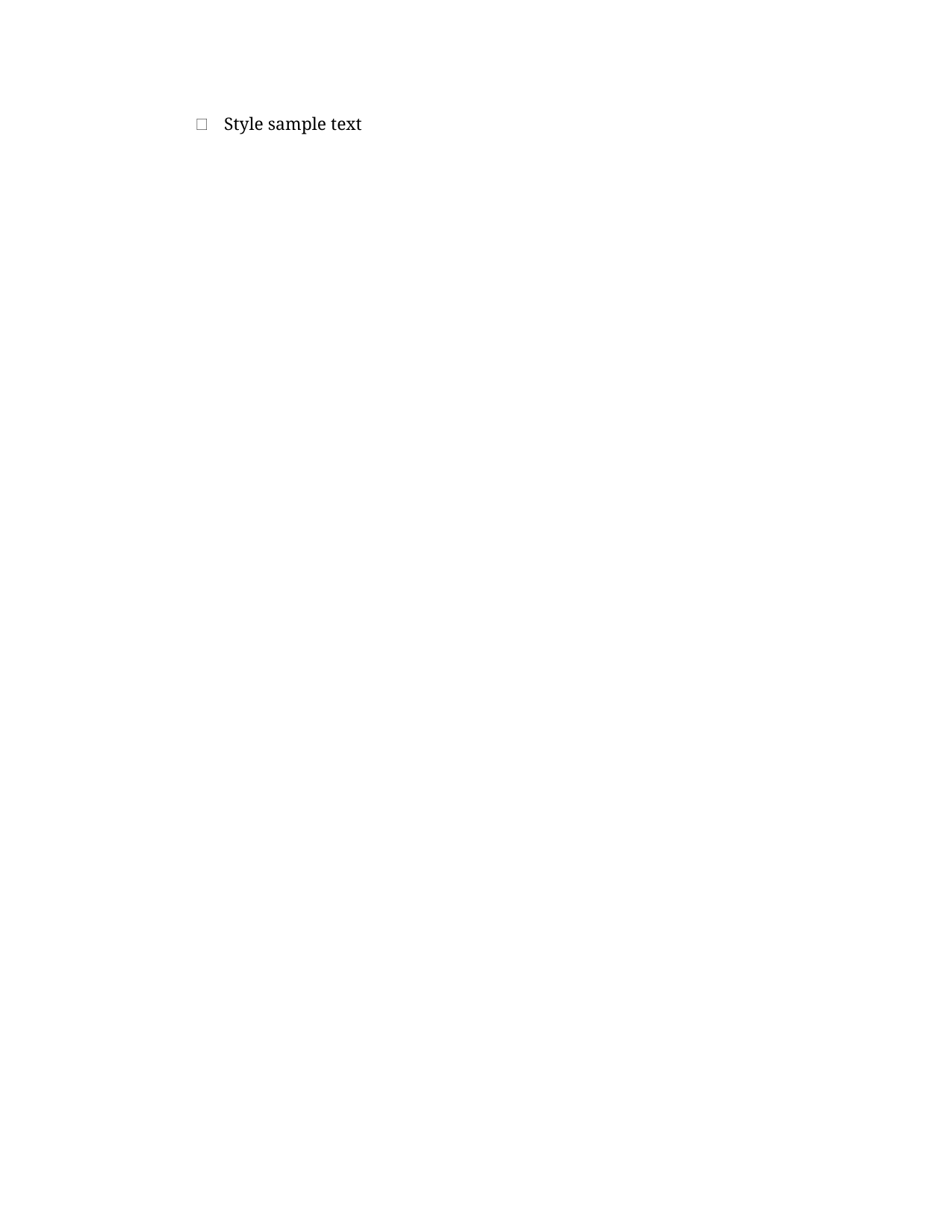

Render assertions

No render assertions declared.

Generator source

scripts/gen_style_builtin.py

#!/usr/bin/env python3
"""Generate ``fixtures/docx/style-builtin--<style-id>.docx`` fixtures.

Parameterised generator driven by ``features/docx/style-builtin.json``.
For each built-in Word paragraph style, produce a single-paragraph
document whose paragraph carries
``<w:pPr><w:pStyle w:val="<StyleId>"/></w:pPr>``.

The generator accepts the *display* name of the style (what Word shows
in its Styles pane, e.g. ``Heading 4``, ``Body Text 2``, ``TOC Heading``)
because ``Document.add_paragraph(style=...)`` in python-docx looks up
styles by display name — passing the camel/pascal-case ``style_id``
raises a deprecation warning. The manifest's ``arg_template`` therefore
passes ``--style-id <StyleId>`` (the XML identifier), and this script
translates to the display name via ``doc.styles[StyleId]``.
"""

from __future__ import annotations

import argparse
from pathlib import Path

from docx import Document

_REPO_ROOT = Path(__file__).resolve().parent.parent


def _write(style_id: str, out: Path) -> None:
    doc = Document()
    # python-docx indexes styles by display name; the default template
    # populates the Styles part with a style whose `style_id` attribute
    # is the camel/pascal-case XML identifier we want to resolve. We
    # scan once instead of using `doc.styles[style_id]` because that
    # path raises a DeprecationWarning in modern python-docx.
    display_name = None
    for style in doc.styles:
        if getattr(style, "style_id", None) == style_id:
            display_name = style.name
            break
    if display_name is None:
        raise SystemExit(
            f"Built-in style {style_id!r} not found in the default template"
        )
    doc.add_paragraph("Style sample text", style=display_name)
    out.parent.mkdir(parents=True, exist_ok=True)
    doc.save(out, reproducible=True)


def main() -> int:
    parser = argparse.ArgumentParser()
    parser.add_argument(
        "--style-id",
        required=True,
        help="Built-in style identifier (e.g. 'Heading4', 'TOCHeading').",
    )
    parser.add_argument("--out", required=True, help="Output .docx path.")
    args = parser.parse_args()

    out_path = Path(args.out)
    if not out_path.is_absolute():
        out_path = _REPO_ROOT / out_path
    _write(args.style_id, out_path)
    print(out_path)
    return 0


if __name__ == "__main__":
    raise SystemExit(main())

Manifest (expanded)

{
  "$schema": "../manifest.schema.json",
  "id": "docx/style-builtin--list-bullet-3",
  "kind": "literal",
  "title": "Built-in paragraph styles",
  "format": "docx",
  "category": "styles",
  "summary": "Apply each built-in Word paragraph style (Normal, Title, Heading 4-9, List Bullet, Quote, Caption, ...) via <w:pPr><w:pStyle w:val=\"<StyleId>\"/></w:pPr>.",
  "spec": {
    "source": "ecma-376-5-part-1",
    "clause": "17.7",
    "element": "w:pStyle",
    "rnc_reference": "spec/ecma-376-5/part-1/rnc/WordprocessingML.rnc",
    "xsd_reference": "spec/ecma-376-5/part-1/xsd/wml.xsd",
    "notes": "Built-in paragraph styles ship in Word's default styles.xml and are referenced from a paragraph via <w:pPr><w:pStyle w:val=\"<StyleId>\"/></w:pPr>. The style_id is the whitespace-collapsed camel/pascal-case identifier (e.g. 'Heading4', 'BodyText2', 'TOCHeading') while the display name shown in Word's UI may include spaces ('Heading 4', 'Body Text 2', 'TOC Heading'). This manifest enumerates every paragraph-type style that ships in python-docx's default document template, excluding (1) the three that already have dedicated literal manifests (docx/heading-1, docx/heading-2, docx/heading-3), and (2) the 'Normal' style, which is the default and is never emitted as an explicit <w:pStyle> by python-docx (there is nothing to assert against). Clause 17.7 of ECMA-376 Part 1 covers style definitions in general; 17.7.4.17 specifies w:pStyle specifically, and 17.9.21 lists the reserved built-in style identifiers."
  },
  "fixtures": {
    "machine": "docx/style-builtin--list-bullet-3"
  },
  "generator": {
    "python": "scripts/gen_style_builtin.py",
    "arg_template": "--style-id {style.style_id} --out fixtures/docx/style-builtin--{style.id}.docx"
  },
  "_expansion": {
    "parent_id": "docx/style-builtin",
    "bindings": {
      "style": "list-bullet-3"
    }
  },
  "assertions": [
    {
      "id": "style-pstyle-present-list-bullet-3",
      "part": "word/document.xml",
      "namespaces": {
        "w": "http://schemas.openxmlformats.org/wordprocessingml/2006/main"
      },
      "xpath": "//w:p/w:pPr/w:pStyle",
      "must": "exist",
      "description": "The sample paragraph must carry a <w:pStyle> inside its <w:pPr>."
    },
    {
      "id": "style-is-list-bullet-3",
      "part": "word/document.xml",
      "namespaces": {
        "w": "http://schemas.openxmlformats.org/wordprocessingml/2006/main"
      },
      "xpath": "//w:p/w:pPr/w:pStyle/@w:val",
      "must": "equal",
      "value": "ListBullet3",
      "description": "The pStyle value must equal the built-in style identifier 'ListBullet3' (display name: 'List Bullet 3')."
    }
  ]
}
