docx/table-merged-cells

Metadata

XPath assertions

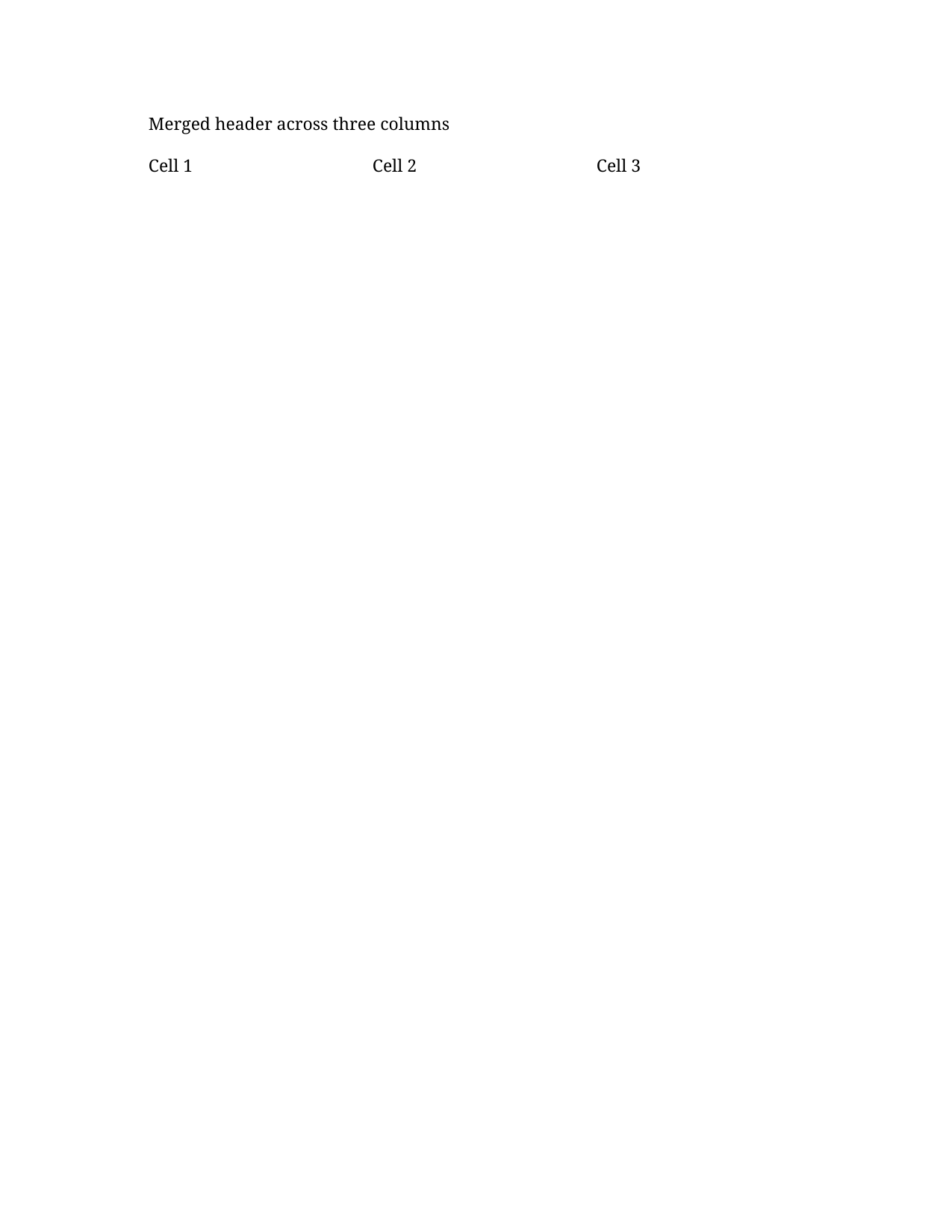

Render assertions

Generator source

scripts/gen_table_merged_cells.py

#!/usr/bin/env python3
"""Generate ``fixtures/docx/table-merged-cells.docx``.

A 2x3 table whose first row is one horizontally merged cell spanning
all three columns (gridSpan=3). Satisfies the assertions in
``features/docx/table-merged-cells.json``.

Uses ``_Cell.merge()`` from the standard python-docx API.
"""

from __future__ import annotations

from pathlib import Path

from docx import Document

_REPO_ROOT = Path(__file__).resolve().parent.parent
_OUT = _REPO_ROOT / "fixtures" / "docx" / "table-merged-cells.docx"


def main() -> int:
    doc = Document()
    table = doc.add_table(rows=2, cols=3)

    # Set the merged-header text on the top-left anchor cell, then merge it
    # across the full width of the first row (gridSpan=3).
    table.rows[0].cells[0].text = "Merged header across three columns"
    a = table.rows[0].cells[0]
    b = table.rows[0].cells[2]
    a.merge(b)

    table.rows[1].cells[0].text = "Cell 1"
    table.rows[1].cells[1].text = "Cell 2"
    table.rows[1].cells[2].text = "Cell 3"

    _OUT.parent.mkdir(parents=True, exist_ok=True)
    doc.save(_OUT, reproducible=True)
    print(_OUT)
    return 0


if __name__ == "__main__":
    raise SystemExit(main())

Manifest (expanded)

{
  "$schema": "../manifest.schema.json",
  "id": "docx/table-merged-cells",
  "title": "Table with horizontally merged cells (gridSpan)",
  "format": "docx",
  "category": "tables",
  "summary": "A 2x3 table whose entire first row is one horizontally merged cell (gridSpan=3).",
  "spec": {
    "source": "ecma-376-5-part-1",
    "clause": "17.4.16",
    "element": "w:gridSpan",
    "rnc_reference": "spec/ecma-376-5/part-1/rnc/WordprocessingML.rnc",
    "xsd_reference": "spec/ecma-376-5/part-1/xsd/wml.xsd",
    "notes": "Horizontal merging is expressed via <w:tcPr><w:gridSpan w:val=\"N\"/></w:tcPr>, where N is the number of logical columns the cell covers. Vertical merging uses <w:vMerge> (17.4.29). This fixture exercises horizontal merging only."
  },
  "fixtures": {
    "machine": "docx/table-merged-cells",
    "office": "docx/table-merged-cells"
  },
  "generator": {
    "python": "scripts/gen_table_merged_cells.py"
  },
  "assertions": [
    {
      "id": "tbl-gridspan-3-present",
      "part": "word/document.xml",
      "namespaces": {
        "w": "http://schemas.openxmlformats.org/wordprocessingml/2006/main"
      },
      "xpath": "//w:tc/w:tcPr/w:gridSpan[@w:val='3']",
      "must": "exist",
      "description": "At least one cell must declare a horizontal merge of 3 via <w:tcPr><w:gridSpan w:val=\"3\"/></w:tcPr>."
    },
    {
      "id": "tbl-merged-text",
      "part": "word/document.xml",
      "namespaces": {
        "w": "http://schemas.openxmlformats.org/wordprocessingml/2006/main"
      },
      "xpath": "//w:tbl//w:tc//w:t[contains(normalize-space(), 'Merged header across three columns')]",
      "must": "exist",
      "description": "A cell containing the literal merged-header text must be present in the table."
    }
  ],
  "render_assertions": [
    {
      "id": "table-merged-cell-rendered",
      "kind": "css_selector",
      "selector": ".docx-wrapper table td[colspan='3'], .docx-wrapper table th[colspan='3']",
      "must": "match-text",
      "value": "Merged header",
      "description": "A rendered <td>/<th> with colspan='3' under .docx-wrapper must contain 'Merged header'."
    },
    {
      "id": "table-merged-cell-colspan-exists",
      "kind": "css_selector",
      "selector": ".docx-wrapper table td[colspan='3'], .docx-wrapper table th[colspan='3']",
      "must": "equal-count",
      "count": 1,
      "description": "Exactly one cell with colspan='3' must be present (the merged header row). Catches renderers that drop or duplicate the horizontal merge."
    },
    {
      "id": "table-row-count",
      "kind": "css_selector",
      "selector": ".docx-wrapper table tr",
      "must": "equal-count",
      "count": 2,
      "description": "The rendered table has 2 rows (one merged header, one data row with three cells)."
    },
    {
      "id": "table-merged-row1-cell1-rendered",
      "kind": "css_selector",
      "selector": ".docx-wrapper table tr:nth-of-type(2) td:nth-of-type(1), .docx-wrapper table tr:nth-of-type(2) th:nth-of-type(1)",
      "must": "match-text",
      "value": "^Cell 1$",
      "description": "Data row, column 1 must be exactly 'Cell 1'. Catches the merged header's text leaking into the data row."
    },
    {
      "id": "table-merged-row1-cell3-rendered",
      "kind": "css_selector",
      "selector": ".docx-wrapper table tr:nth-of-type(2) td:nth-of-type(3), .docx-wrapper table tr:nth-of-type(2) th:nth-of-type(3)",
      "must": "match-text",
      "value": "^Cell 3$",
      "description": "Data row, column 3 must be exactly 'Cell 3'. Catches a merged row absorbing the data row below it."
    },
    {
      "id": "table-merged-data-row-has-three-cells",
      "kind": "css_selector",
      "selector": ".docx-wrapper table tr:nth-of-type(2) td, .docx-wrapper table tr:nth-of-type(2) th",
      "must": "equal-count",
      "count": 3,
      "description": "The data row must have 3 cells. A merge-leak bug could collapse the data row to one cell too, which this catches."
    },
    {
      "id": "merged-header-has-a11y-semantic",
      "kind": "css_selector",
      "selector": ".docx-wrapper table th[colspan='3'], .docx-wrapper table [role='columnheader'][colspan='3'], .docx-wrapper table [scope='colgroup'], .docx-wrapper table [scope='col'], .docx-wrapper table thead td[colspan='3']",
      "must": "exist",
      "description": "Accessibility: when a docx table's first row is a merged group-header, the renderer should signal header semantics — a <th> with colspan, a role='columnheader' with colspan, a scope='colgroup'/'col' marker, or a <thead>-nested merged <td>. Any of these is accepted; plain <td colspan='3'> with no header hint fails this assertion."
    }
  ]
}
